Mini Digital DC 100V 50A Voltmeter Ammeter Panel Amp Voltage Meter Red Green Dual LED Display

#98043
Out of stock
 840

Out of stock

Description

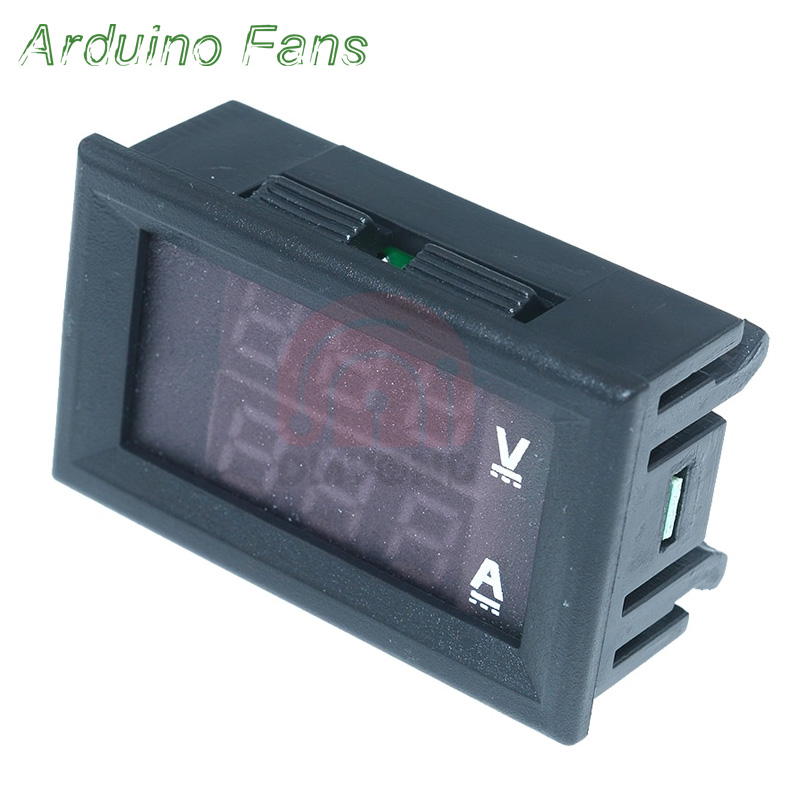

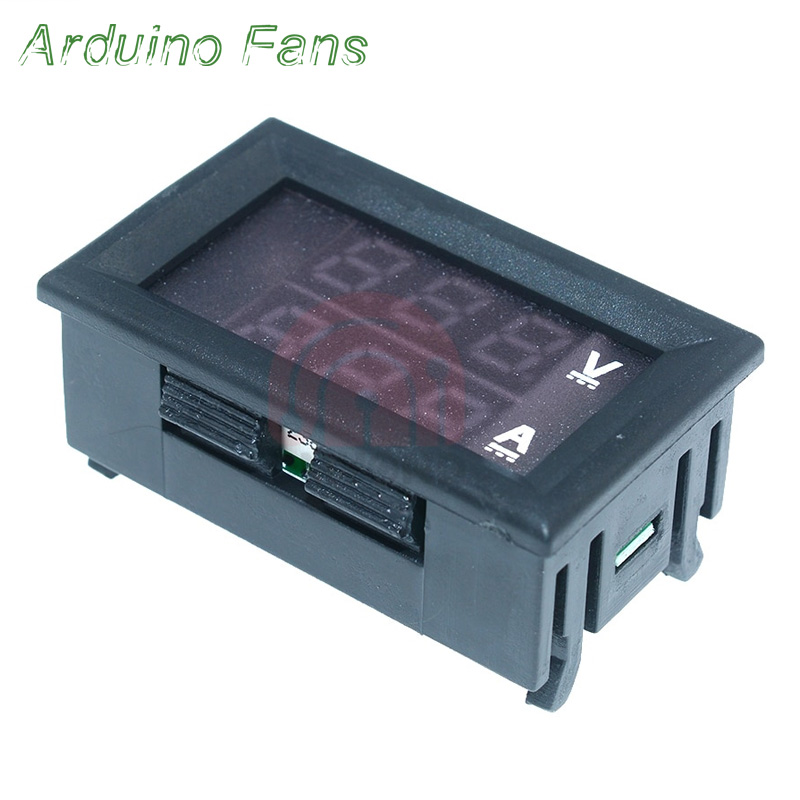

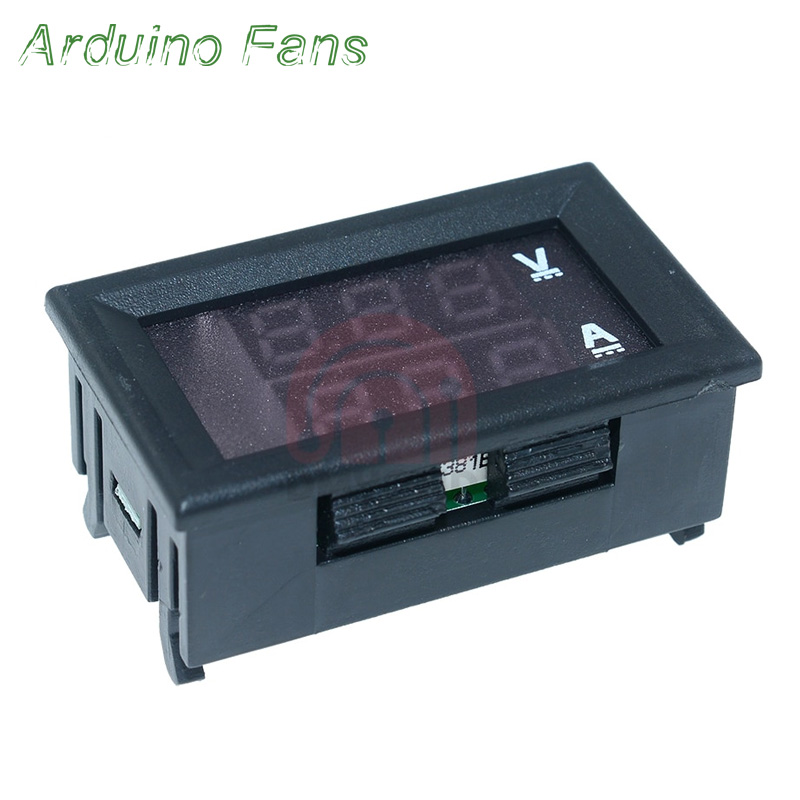

Mini Digital DC 100V 50A Voltmeter Ammeter Panel Amp Volt Voltage Current Meter with Shunt 0.56 inch Red Green Dual LED Display

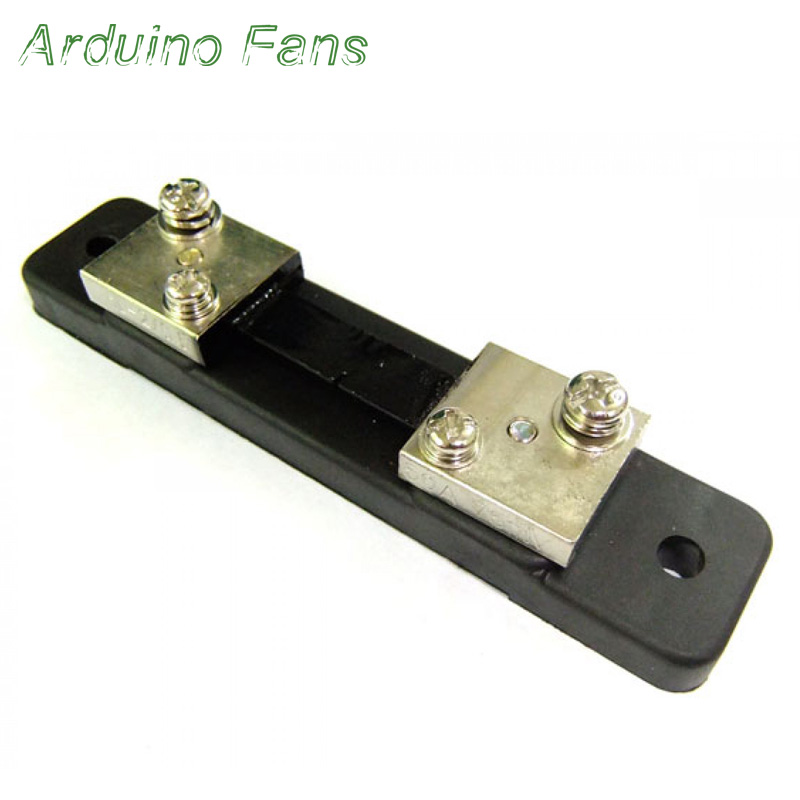

  • 100% New and High Quality DC 100V 50A Digital Volt Amp Meter with 50A Shunt
  • 3+3 Digit 0.56 inch Red + Green Dual LED Tube Display
  • Supply Voltage: 4-30V DC
  • Voltage Measurement: 0.1-100V DC
  • Current Measurement: 0.1-50A DC

Working voltage of Meter itself : DC 4 – 30V (The maximum input voltage can not exceed 30V. Otherwise the meter will be burned).

Features and Specifications

  • Operating voltage:DC 4.5 ~ 30V
  • Measure voltage: DC 0 ~ 100V
  • Minimum resolution(V): 0.1V
  • Minimum resolution(A): 0.01A
  • Operating current: <20mA
  • Display: dual 3 digit 0.56″ LED digital tube
  • Display color: Red and Green  (two-color display)
  • Dimensions: 48 x 29 x 21mm
  • Mounting cutout: 45.5 x 26.1mm
  • Refresh rate: about 500mS / times
  • Measure accuracy: 1% (± 1 digit)
  • Operating temperature: -10 to 65° c
  • Operating Humidity: 10 to 80% (non-condensing)
  • Working pressure: 80 to 106 kPa
  • Applications: Suitable for solar panels / automotive / electric cars / motorcycles / UPS battery monitoring or other products voltage current measurement.

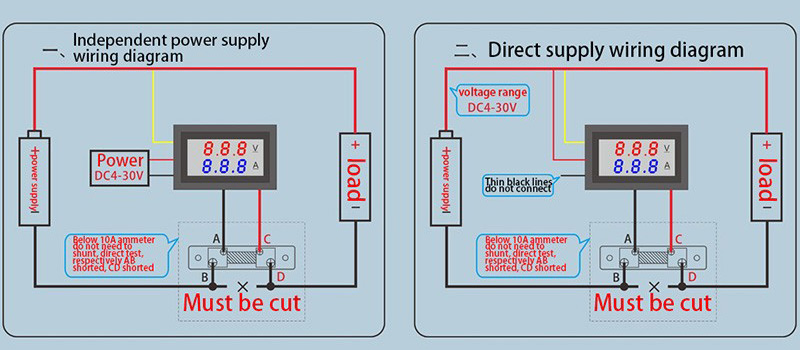

Connection Diagram



Additional information

Weight 200 g
Dimensions 8 × 5 × 4 cm
Color

Green, Red

Input Current

50 Ampere (max)

Output Current

50 Ampere (max)

Power Supply

4.5-30V DC
