Description

Mini Digital Voltmeter Ammeter DC 100V 10A Panel Amp Volt Current Meter Tester 0.56″ Red + Blue Dual LED Display

• 100% New and High Quality Digital Volt Amp Meter
• 0.56″ Red + Blue Dual LED Tube Display
• DC 100V 10A Panel Amp Volt Current Meter Tester
• Voltage Measuring range: DC 0 – 100V
• Current Measuring range: DC 0 – 10A
• Voltage resolution (V): 0.1V
• Current resolution (A): 0.01A
• Measure accuracy: 1% (± 1 digit)

Specifications:

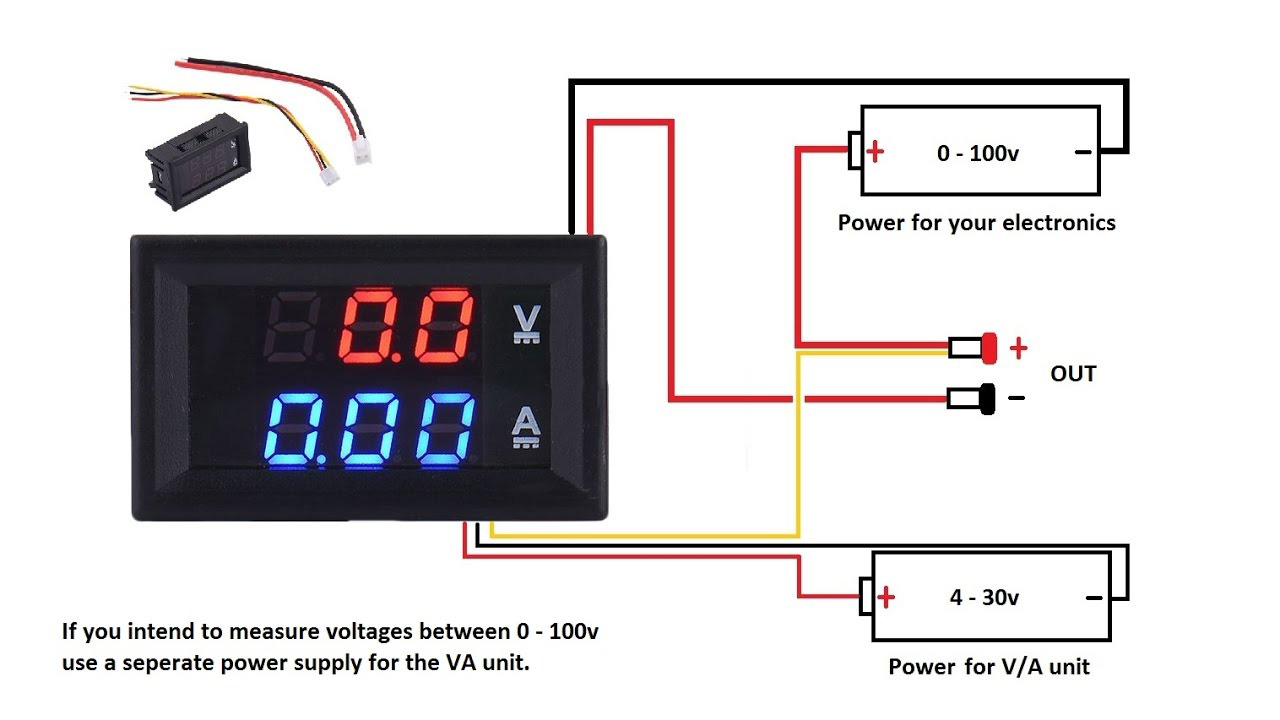

Working voltage of Meter itself:DC 4 – 30V(The maximum input voltage can not exceed 30V. Otherwise the meter will be burned)

Working current of Meter itself:≤20mA

Voltage Measuring range: DC 0 – 100V

Current Measuring range: DC 0 – 10A

Voltage resolution (V): 0.1V

Current resolution (A): 0.01A

Measure accuracy: 1% (± 1 digit)

Display: 0.56″ digital tube, Two color blue and red

Refresh rate: about 300mS / times

Dimensions: 48mm x 29mm x 26mm

Operation Temp: -10°-+65°
